Support System

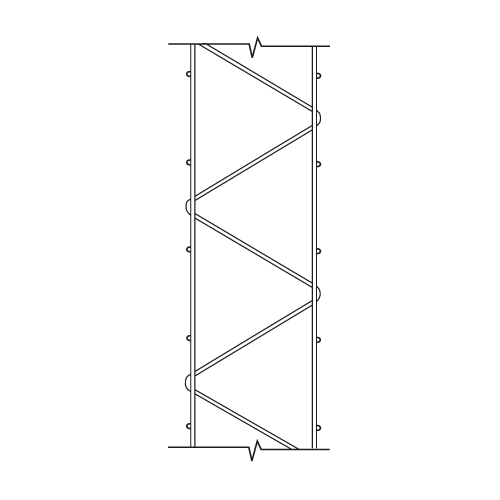

![‘Gun Quip’ Wall & Support System ‘Gun Quip’ Wall & Support System](/fileadmin/products/dsi-underground-canada/dsi-canada-underground-gun-quip-1.jpg)
- Shotcrete panel
- ventilation walls - temporary or permanent.
- fireproof underground work shops and offices.
- provides rock support with rock bolt installation
- protective reinforcing around elevators and shafts.
- extra protection on walls and roofs near expensive machinery or electrical substations.
- comes complete with backing or plain
- manufactured under ASTM A02
- ASTM 510 wire composition
- ASTM A82
- wire size 14 gauge (WO.5)
- nominal diameter - wire diameter
0.080 inches (2.032 mm). Specify wire diameter.
0.081 inches +.001 (2.0574 mm + .0254 mm) - Tensile
- maximum: 130,000 psi (896 MPa)
- minimum: 110,000 psi (758 MPa)
